Mandatory steps for developing a Start-Frame –
Step-by-step-guide for Java-Fat-Client development

This document lists the steps (with links to more detailed descriptions and sample code) to develop a Start-Frame as Command-Center to start Task-Frames to perform Business-Tasks.

Shortcut:

This document covers the following steps:

• Step by step instructions for developing a Fat-Client application with the sections:
* Create the class,
* Code the 'Constructor' and call it in the 'main()' method,
* Define the language dependant GUI-elements and add the code to display it,
* Define the list with displayed and internal codes for the Business Tasks and add the code to display it,
* Reacting to the button-click and open the Task-Frame,
* Loading the parameters for database access and writing the XML-structure with the parameters,

• Index of documents with detailed descriptions and theory about developing a Fat-Client application in Java.

Credits:

To many to list; please see the linked documents with the detailed descriptions.

Prerequisites:

• Aside, that the Eclipse workbench with the plugin for the Visual Editor (VE) has to be installed,
  the preparation is described here.

Step by step instructions:

Create the class

A more detailed description with screenshot is in the document JS_FC01d – Create and code the class for the GUI.

In catchwords:
* Right click onto the 'Project' and select >New>Other...
* In the following window expand 'Java' (if not alredy done), select >Visual Class and click the [ Next > ] button.
* Enter the Package (xxx_project_xxx.clientframes),
   the (Class-)Name (XXX_Project_XXX_CommandCenter) and
   the Superclass (js_base.frame.JSBS_StartFrame).
   Check [ ] public static void main(String[] args) and click the [ Finish ] button.

top.

Code the 'Constructor' and call it in the 'main()' method

The following step assumes, that the stardard layout (as defined in the inherited class JSBS_StartFrame) should be used.

To keep the code clearly arranged, the constructor just calls three methods with the consecutive commands.
The parameter passed (language used during start-up) will be used in one of the following steps.
public class JS_ProjAssist_CommandCenter extends JSBS_StartFrame {
/*
 * -------------------------------
 * Constructor of the class */
    public JS_ProjAssist_CommandCenter(String parmstrLanguageCode){
      super();
      initialize_before_frame(parmstrLanguageCode);
      initialize_frame();
      initialize_after_frame();
    }

/*
 * -------------------------------
 * Method with code to be executed before the GUI is build */
    private void initialize_before_frame(String parmstrLanguageCode) {
    }

/*
 * -------------------------------
 * Method with code to construct and display the GUI (Graphic User Interface) */
    private void initialize_frame() {
      setVisible(true);
      setSize(600, 400);
/* Use the standard GUI-layout (without currency-selection)
 * as defined in the inherited class (JSBS_StartFrame). */
      setContentPane(get_pnl_Main());
    }

/*
 * -------------------------------
 * Method with code to be executed after the GUI is build */
    private void initialize_after_frame() {
    }

    public static void main(String[] args) {

To be able to start an application, a main() - method is requiered:
    public static void main(String[] args) {
      String locstrLanguageCode = "";
      if (args.length > 0) locstrLanguageCode = args[0];
      try {
        JS_ProjAssist_CommandCenter aJS_ProjAssist_CommandCenter =
                new JS_ProjAssist_CommandCenter(locstrLanguageCode);
      }
      catch(Throwable exc) {
        System.out.println("Exception occured in main() of JS_ProjAssist_CommandCenter");
        exc.printStackTrace(System.out);
      }
    }

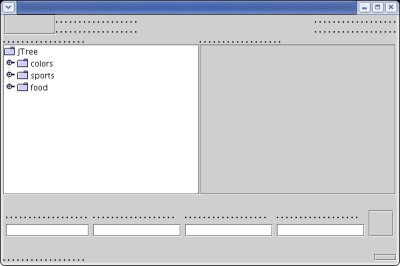

To verify, run the application and you should get a frame like that:



There is not text visible yet as the text is imported from a language dependant external file.
That will be covered in the next step.

top.

Define the language dependant GUI-elements and add the code to display it

The following step assumes, that the stardard layout (as defined in the inherited class JSBS_StartFrame) should be used.

The file with the xml-structure containing the language dependent GUI-elements are in the directory 'TEXT' enhanced with the ISO-code for the language (e.g. 'TEXT.en').
For the theory of the directories containing 'parameters' please see the document Directory Architecture.

A more detailed description with screenshot how to create directory and file are in the documents JS_FC01g – Setting the properties of the GUI-elements and JS_FC01h – Setting the properties of the GUI-elements, Part 2.
Additionally, Structure of the xml-file with language-dependant text-elements for the user-interface (DisplayStrings.xml in directory TEXT.en) gives a theoretical background.

In catchwords:
* Right click onto the 'Project' and select >New>Folder.
* Enter the Folder Name (TEXT.en) (obey the case, please !) and click the [ Finish ] button.
* Right click onto the just created folder and select >New>File.
* Enter the File Name (DisplayStrings.xml) and click the [ Finish ] button.
* Copy the xml-structure from here into the empty file.

To import more classes from the package js_base.frame, the fully qualified class StartFrame has to be changed to a wildcard and some more packages have to be imported.
import js_base.frame.*; (instead of import js_base.frame.StartFrame ;)
import js_base.structures.*;
import js_base.xml.*;

The structure with the language dependent GUI-elements is loaded very early within the application:
Before it can be loaded, the Universal Parameters have to be 'constructed' as they contain the folder (directory) where the language dependent elements reside.
    private void initialize_before_frame(String parmstrLanguageCode) {
/* Initialize the structure with the set of parameters
 * (defined in the inherited class JSBS_StartFrame). */
      structJSBS_UniversalParameters = new JSBS_UniversalParameters(parmstrLanguageCode);
/* Initialize the structure with the language dependent GUI-element
 * (defined in the inherited class JSBS_StartFrame).
 * This also loads the structure from the file. */
      structJSBS_XML_DisplayStrings = new JSBS_XML_DisplayStrings(structJSBS_UniversalParameters);
/* Verify if the class was constructed without an error. */
      if (structJSBS_XML_DisplayStrings.StatusCode != JSBS_XML_Constants.CONST_OK) {
        System.out.println("Error while building 'structJSBS_XML_DisplayStrings'; StatusCode: " +
          (new Integer(structJSBS_XML_DisplayStrings.StatusCode)).toString());
        System.exit(structJSBS_XML_DisplayStrings.StatusCode);
      }
    }


After the GUI-elements are created, the text is assigned to it.
    private void initialize_after_frame() {
/* Assign the language dependent text to the GUI-elements.
 * The method used is defined in the imported library JSBS_Base. */
      JSBS_FrameServices.processLanguageDependantElements(this);
    }

As the application expects the language code as a parameter, this has to be passed.

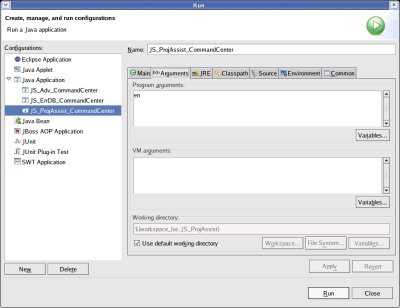

To do so, the parameter has to be entered on the tab 'Arguments' when the application is started out of Eclipse:

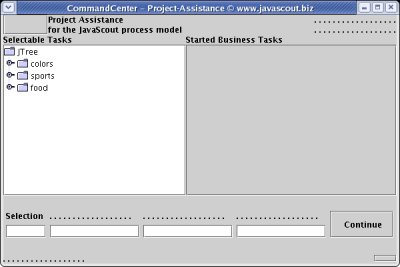

To verify, run the application and you should get a frame like that:



The fields with the dotted lines are context sensitive and are not filled by the elements out of the file with the xml-structure.

top.

Define the list with displayed and internal codes for the Business Tasks and add the code to display it

The following step assumes, that the stardard layout (as defined in the inherited class JSBS_StartFrame) should be used.

The file with the xml-structure containing the language dependent GUI-elements are in the directory 'TEXT' enhanced with the ISO-code for the language (e.g. 'TEXT.en'). This directory was already created in the previous step.
For the theory of the directories containing 'parameters' please see the document Directory Architecture.

A more detailed description with screenshots about the idea of the 'Task-tree' is in the document Structure of the xml-file with the list of Tasks for the application (Tasks.xml in directory TEXT.en).

In catchwords:
* Right click onto the folder TEXT.en and select >New>File.
* Enter the File Name (Tasks.xml) and click the [ Finish ] button.
* Copy the xml-structure from here into the empty file.

The XML-structure with the Business-Task is loaded immedeiately after the structure with the text for the language dependent GUI-elements.
This is done because the GUI-element that displays the information about Business Tasks has to be created and filled with content before all the GUI-elements are displayed.
    private void initialize_before_frame(String parmstrLanguageCode) {
/*
 * Initialize the structure with the set of parameters
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
        System.exit(structJSBS_XML_DisplayStrings.StatusCode);
      }
/*
 * Initialize the XML-structure for the selectable Business Tasks.
 * The variable for the structure is defined in the inherited class JSBS_StartFrame). */
      structJSBS_XML_Tasks = new JSBS_XML_Tasks(structJSBS_UniversalParameters);
/* Verify if the class was constructed without an error. */
      if (structJSBS_XML_Tasks.StatusCode != JSBS_XML_Constants.CONST_OK) {
        System.out.println("Error while building 'structJSBS_XML_Tasks'; StatusCode: " +
          (new Integer(structJSBS_XML_Tasks.StatusCode)).toString());
        System.exit(structJSBS_XML_Tasks.StatusCode);
      }
/* Display the Task-List in the JTree designated to do this.
 * This works, even if the GUI-Element is not yet part of a frame and displayed ;-). */
      tree_SelectableTasks = structJSBS_XML_Tasks.getTaskTree();
    }

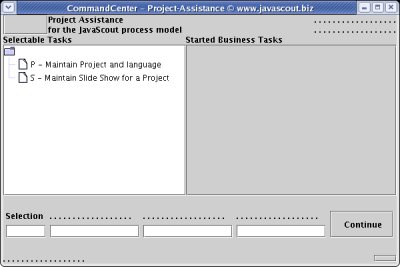

To verify, run the application and you should get a frame like that:



top.

Reacting to the button-click and open the Task-Frame

The following step assumes, that the class inherites from class JSBS_StartFrame.
Otherwise, the Interface ActionListener has to be implemented.

A more detailed description with screenshots how to react to a button-click and handle an action are in the documents JS_FC01i – Create and code the class for the 'Task-Frame to maintain 'Projects' and Base lesson 2, step 2: Adding an action: selecting the file with the SQL-commands.

As discussed in the documents above, it is wise to create an extra class for handling actions.
In catchwords:
* Right click onto the package (js_projassist.clientframes in our example) and select >New>Class.
* Enter the Package (xxx_project_xxx.clientframes) and
   the (Class-)Name (XXX_Project_XXX_CommandCenter__ActionHandler).
* Make sure that no checkbox is selected and click the [ Finish ] button.

Copy the code from JS_ProjAssist_CommandCenter__ActionHandler into the just created class.
As there are no classes for the Task-Frames are defined now, some error will show.
Please comment out the lines with the 'construction' of the Task-Frame.
 * -------------------------------
 * Method to get the selected code for the Business Task out of the entry-field
 * and call the frame with the chosen Business Task. */
    private static void openBusinessTask(JS_ProjAssist_CommandCenter parmCC){
/*
 * Get the internal code using a combined method that also fills the parameter-fields.
 * Instead of the parameter-fields, 'null'-values are passed to signal the method
 * just to return the internal code. */
      String strInternalCode =
        parmCC.structJSBS_XML_Tasks.processParameterFields(parmCC.get_txt_Code(),
                                                           null, null, null, null, null, null);
/* Check which button was clicked and call the appropriate method. */
      if (strInternalCode.equals("P")) {
//        JS_ProjAssist_Project frm_ JS_ProjAssist_Project = new JS_ProjAssist_Project(parmCC);
//        frm_ JS_ProjAssist_Project.setVisible(true);
      }
    }


That the event can be handled, the following package has to be imported to the class JS_ProjAssist_CommandCenter:
package js_projassist.clientframes;

import java.awt.event.*;

import js_base.frame.*;
import js_base.structures.*;
import js_base.xml.*;

Finally, a method actionPerformed(ActionEvent e) must be defined in the class JS_ProjAssist_CommandCenter.
This method is called when a button is clicked.
Its only function is to call the method handleEvent() in the just created class JS_ProjAssist_CommandCenter__ActionHandler and pass the parameter of class ActionEvent.
/*
 * -------------------------------
 * Method that is triggered when a button is clicked.
 * This method overwrites the method in the inherited class (JSBS_StartFrame). */
    public void actionPerformed(ActionEvent e) {
      JS_ProjAssist_CommandCenter__ActionHandler.handleEvent(this, e);
    }

top.

Loading the parameters for database-access and writing the XML-structure with the parameters

This step is a prerequisite to access data on a database; i.e. to store and retrieve data with a Task-Frame.
You might bypass this step and create the Layout of the Task-Frame(s) next.
But please do not forget this step – it is a prerequisite to access a database after you implemented Business Objects and Database-Access Objects.

A more detailed description how to create and access a database is in document Create the database-Table 'project' and establish the connection.

If you are responsible for creating the database (and need a guideline), please refer to Set up the MySQLdatabase for access by JAVA-applications.

The file with the xml-structure containing the parameters to access a database or a Java Spplication Server (JAS) in the directory 'CONNECTIONS'.
For the theory of the directories containing 'parameters' please see the document Directory Architecture.

A more detailed description with an example is in the document Structure of the xml-file with the parameters for database- and JAS-connection (Connections.xml in directory CONNECTIONS).

In catchwords:
* Right click onto the 'Project' and select >New>Folder.
* Enter the Folder Name (CONNECTIONS) (obey the case, please !) and click the [ Finish ] button.
* Right click onto the folder CONNECTIONS and select >New>File.
* Enter the File Name (Connections.xml) and click the [ Finish ] button.
* Copy the xml-structure from here into the empty file.

First, the library with the Connection-Managers (for database and Java Application Server) has to be imported:
package js_projassist.clientframes;

import java.awt.event.*;

import js_base.connections.*;
import js_base.frame.*;
import js_base.structures.*;
import js_base.xml.*;

Next, the run-version of the application has to be set.
For an early stage of development I strongly recommend to work with a local database-system and not with a Java Application Server !
Storing and retrieving from a local database-system makes it much easier to use the debugger.
To set the run-version is the first command after the class is constructed:
/*
 * -------------------------------
 * Method with code to be executed before the GUI is build */
    private void initialize_before_frame(String parmstrLanguageCode) {
/*
 * ********************
 * Set the version of the application:
 * >> Please comment out the version you are not testing or which is not for delivery ! << */
      RunVersion = CONST_StandAlone;
//      RunVersion = CONST_FatClient;
/*
 * Initialize the structure with the set of parameters
 * (defined in the inherited class JSBS_StartFrame). */
      structJSBS_UniversalParameters = new JSBS_UniversalParameters(parmstrLanguageCode);

The Class with the connection managers (for database or Java Application Server) is constructed depending on the run-version.
The construction of the structure includes the reading of the file 'Connections.xml', getting the parameters out of the XML-structure and establishing the connection to the database or the Java Application Server.
    private void initialize_before_frame(String parmstrLanguageCode) {
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . .
/* Display the Task-List in the JTree designated to do this.
 * This works, even if the GUI-Element is not yet part of a frame and displayed ;-). */
      tree_SelectableTasks = structJSBS_XML_Tasks.getTaskTree();
/* Establish the connection to the database-system and/or the JAS -
 * depending on the RunVersion. */
      if ((RunVersion == CONST_StandAlone) || (RunVersion == CONST_MobileClient)) {
        structJSBS_DB_ConnectionManager =
          new JSBS_DB_ConnectionManager(structJSBS_UniversalParameters);
/* Verify if the class was constructed without an error. */
        if (structJSBS_DB_ConnectionManager.StatusCode != JSBS_XML_Constants.CONST_OK) {
          System.out.println("Error while building 'structJSBS_DB_ConnectionManager'; StatusCode: " +
            (new Integer(structJSBS_DB_ConnectionManager.StatusCode)).toString() +
            "; StatusMessage: " + structJSBS_DB_ConnectionManager.StatusMsg);
          System.exit(structJSBS_DB_ConnectionManager.StatusCode);
        }
      }
    }

/*
 * -------------------------------
 * Method with code to construct and display the GUI (Graphic User Interface) */
    private void initialize_frame() {

If you want to run the application now, make shure that the 'Connections.xml' file with a valid XML-structure exists and the database is established !
If the database is not already established and you need to continue testing Task-Frames (without database access, of course !) you might 'comment out' the termination of the application after the verification failed:
/* Verify if the class was constructed without an error. */
        if (structJSBS_DB_ConnectionManager.StatusCode != JSBS_XML_Constants.CONST_OK) {
          System.out.println("Error while building 'structJSBS_DB_ConnectionManager'; StatusCode: " +
            (new Integer(structJSBS_DB_ConnectionManager.StatusCode)).toString() +
            "; StatusMessage: " + structJSBS_DB_ConnectionManager.StatusMsg);
//            System.exit(structJSBS_DB_ConnectionManager.StatusCode);
        }

top.

dummy for copying

top.

Related Documents:
